Compare D800, E800, F800 and A800 drives below. Already know your horsepower, voltage, phase and communication requirements? Go straight to the filtered catalog.

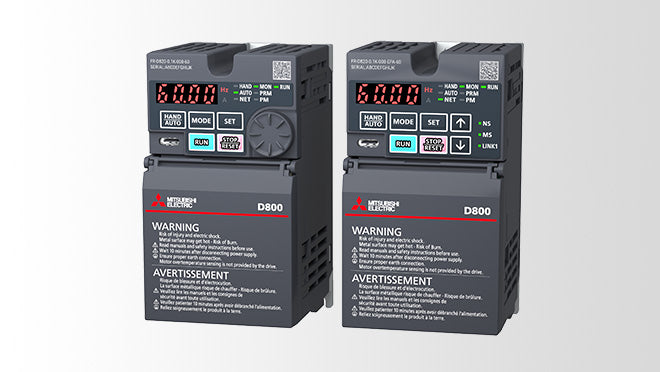

Next-generation compact inverters for general-purpose machinery.
Applications: Packaging machines, conveyors, small fans and pumps, mixers, material handling, compact automation, roll-to-roll systems (dancer control), food & beverage equipment, and OEM machines requiring easy setup.
Shop D800 drives

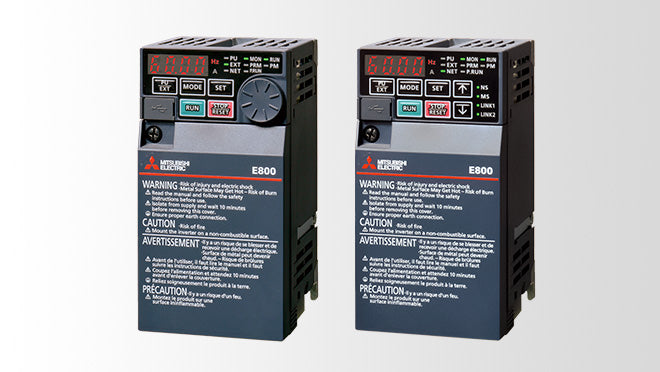

Compact drives for OEM integration and machines where panel space is limited.
Applications: Smart OEM machines, packaging, mixers, conveyors, automation cells, light motion and positioning applications, and systems requiring fast troubleshooting and predictive maintenance.
EtherNet/IP is available on protocol group A; check the exact model for the required network and safety functions.
Shop E800 drives

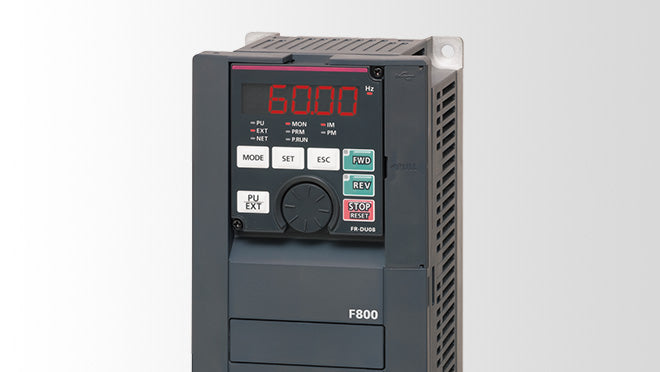

Energy-saving drives with functions designed for fan and pump applications.
Applications: HVAC systems, building automation, water & wastewater plants, irrigation and booster pumps, rooftop air handling units, cooling towers, ventilation fans and flow-control systems.
Includes PID control and energy-optimization functions for fan and pump systems.
Shop F800 drives

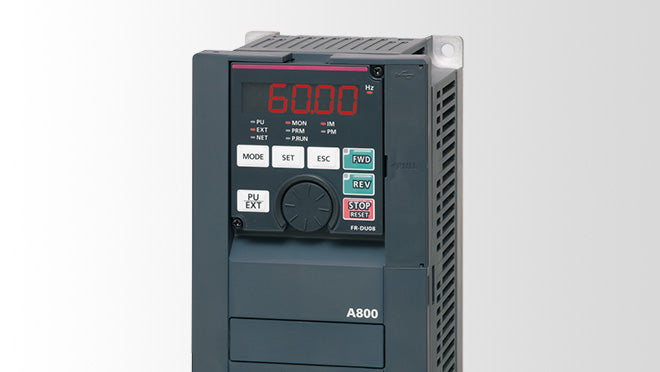

High-performance drives for precise speed and torque control.
Applications: Industrial automation, material handling, extruders, cranes, hoists, machine tools, CNC machinery, automated packaging, winders/unwinders and high-inertia systems.
Motor feedback, positioning, network and safety requirements depend on the selected model and options.
Shop A800 drivesHP ranges below describe the products currently listed in our store, not the full worldwide family range. Voltage classes are nominal; choose the exact supply voltage in the product filters. Confirm output current, duty rating, motor and required options before selecting a drive.
| Family | Listed HP range | Input voltage classes | Motors & control | Communication |
|---|---|---|---|---|
| D800 | 1/8–10 HP | 100/200 V single-phase; 200/400 V three-phase | Induction & PM; sensorless vector | Standard models: RS-485. Ethernet models: select the -EPA or -EPB protocol group. |
| E800 | 1/8–30 HP | 100/200 V single-phase; 200/400/600 V three-phase | Induction & PM; advanced vector | Standard models: RS-485. EPA, EPB and EPC models: built-in Ethernet with different protocol groups. SCE models add safety communication. |
| F800 | 1–1000 HP | 200/400/600 V three-phase | Induction & PM; V/F and vector control | Standard models: RS-485. -E models: built-in Ethernet, Modbus TCP, CC-Link IE Field Basic and BACnet/IP. |
| A800 | 1/2–800 HP | 200/400/600 V three-phase | Induction & PM; high-performance vector | Standard models: RS-485. -E models: built-in Ethernet, Modbus TCP and CC-Link IE Field Basic. |
Ethernet describes the network interface; EtherNet/IP is a specific protocol. Protocol support varies by model. Use the Communication filter to find the required capability.
D700 and E700 information remains available for existing installations and replacement inquiries. Keep new-project comparisons focused on the current families above.
D700: Low-cost micro drives for small motors and basic control, including fans, pumps, agitators, mixers and conveyors. RS-485 supports Mitsubishi inverter protocol and Modbus RTU.
E700: Legacy general-machinery drives with induction-motor vector control and RS-485 communication.
A successor family is not automatically a drop-in replacement. Have us check the exact existing model and application.
The following comparison information has been retained as a starting point for a replacement discussion. These are application comparisons, not verified model-for-model substitutes. Send us the existing model, supply, motor current, load and communication requirements so we can confirm a suitable Mitsubishi selection.
| Mitsubishi Series | Third-Party Brand | Model/Series | Notes |
|---|---|---|---|
| FR-A800 | Allen-Bradley | PowerFlex 755 | High-performance drive, EtherNet/IP and motion applications |
| FR-A800 | Yaskawa | GA800 / A1000 | Closed-loop, general-purpose vector control with safety options |
| FR-A800 | ABB | ACS880 | Full-featured for demanding industrial applications |
| FR-F800 | Danfoss | FC 202 | Optimized for HVAC/fan/pump, BACnet & HVAC protocols |
| FR-F800 | Schneider | Altivar 212 | Fan & pump drive with low harmonics and embedded BACnet |
| FR-F800 | ABB | ACH580 | HVAC optimized drive with embedded BACnet/IP and Modbus |
| FR-E800 | ABB | ACS380 | Compact, network-ready, with safety inputs |
| FR-E800 | Yaskawa | V1000 | Compact and powerful with built-in communication options |
| FR-E800 | Allen-Bradley | PowerFlex 525 | Entry-level EtherNet/IP, compact vector control |
| FR-D800 | Delta | MS300 | Compact, sensorless vector with Modbus |
| FR-D800 | Hitachi | WJ200 | Basic compact drive with RS485 and analog input |
| FR-D800 | Fuji | Mini Series | Low-end drive with limited I/O and protocols |
Use the current D800 family as the starting point for compact-drive replacement inquiries. Final selection requires checking the exact existing model and application.

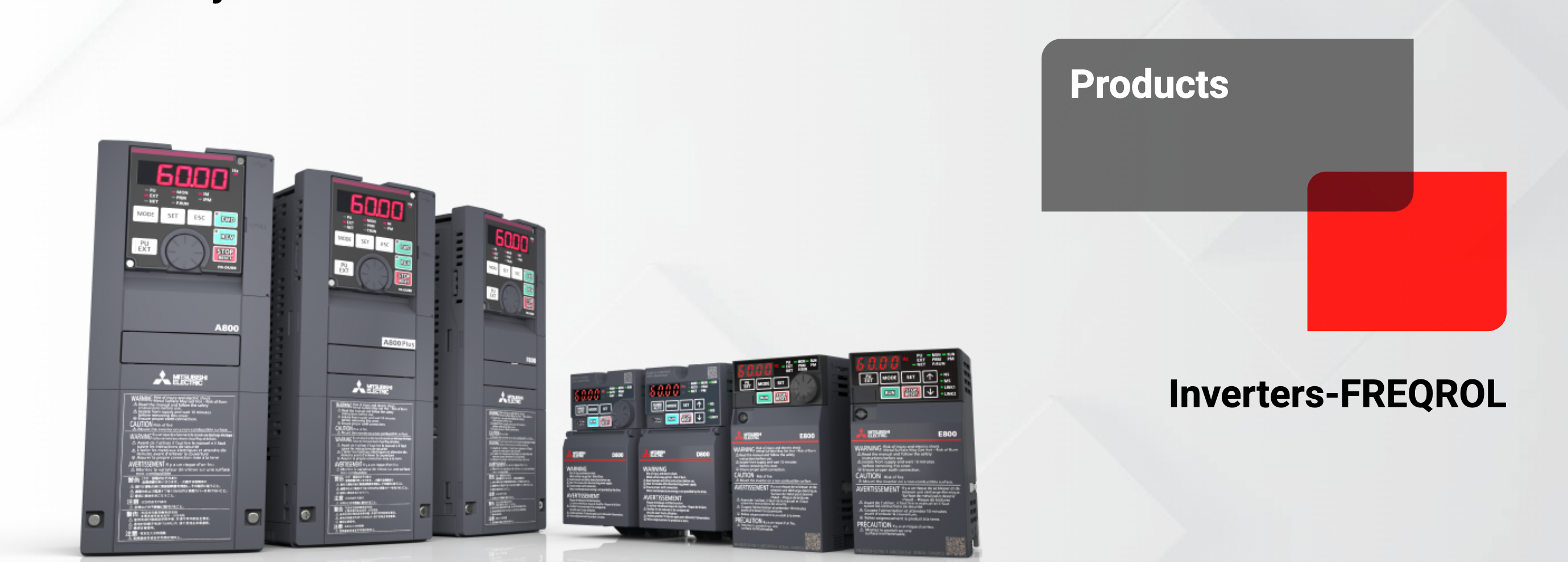

Get replacement-selection helpInverters are variable-frequency power supply units that control the rotation speed of three-phase motors. Mitsubishi FREQROL offers a range of drive families for different applications.
