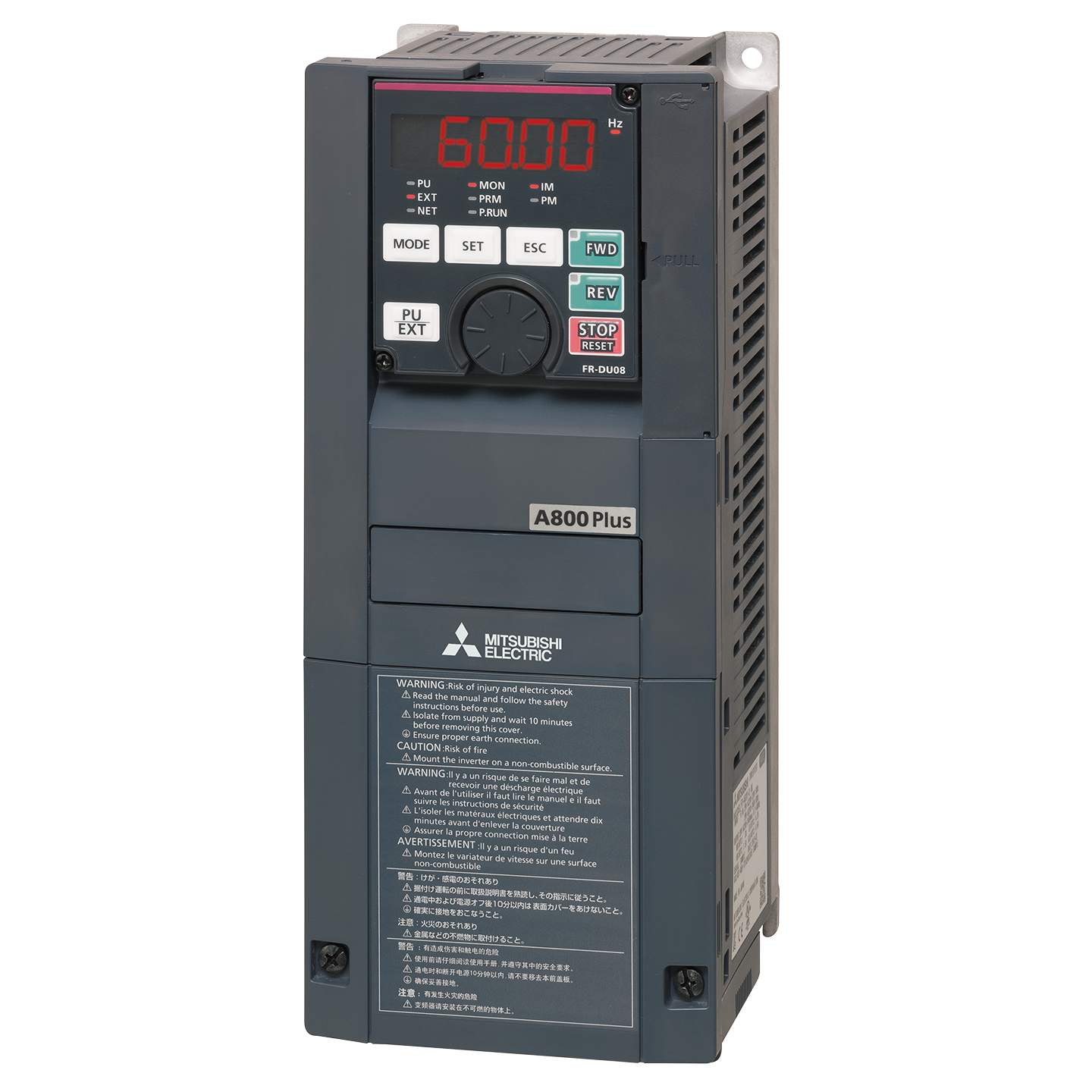

FR-A820-01250-1-N6

With a speed response of 50Hz, FR-A800 to respond to a change in motor load. FR-A800 reacts to a speed signal much faster too – between 2 to 3 ms as opposed to 5 to 20 ms with FR-A700.

200:1 speed range open loop / 1500:1 closed-loop speed range.

A standard FR-A800 VFD can drive high-speed motors at up to 590Hz, compared to the FR-A700’s 400Hz.

Standard FR-A800 VFDs can drive the new generation IPM (Internal Permanent Magnet) motors, such as the Marathon ‘SyMAX’ Series

FR-A800 is a SAFETY drive. “STO” capability enables SIL2 / PLd category emergency stops.

VFD settings can be easily uploaded or downloaded and ‘black box’ operating data at the time of a drive trip can be copied for diagnosis using the FR-Configurator software.

Automatic connectivity to GOT 2000 series GOTs without the need to change any parameters.

FR-A800 has a new internal PLC based around the Mitsubishi Electric ‘L Series’ processor. Instructions in the form of ‘Function Blocks’ can now be used.

All FR-A800 VFDs have Conformal Coated boards as standard.

For drives over 500 HP – greater system flexibility.

Communicate with MODBUS TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.

Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.

Network option cards offer connection to other drive-based networks and a higher level information system.

Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
