E700 — Discontinued
The E700 family is discontinued. For an existing installation or a replacement, request an engineering review of the exact model and application. This legacy page does not recommend accessories automatically.
Need help with a special application? (optional)
FR-E740-170SC-NA — These options depend on the motor, duty and installation. Request a matched selection before ordering an external brake unit, resistor set, reactor, converter, communication card or replacement mounting adapter.
- Motor nameplate voltage, full-load current, horsepower/kW and drive duty rating.
- Load type, stopping time, stops per hour, braking torque, duty cycle and whether the load is overhauling.
- Supply voltage/phase, environment, motor cable length, communication protocol and original drive model when replacing equipment.
Some resistor selections require two resistors wired in series or parallel. Those sets are not offered as a single loose resistor; confirm the matched parts and quantities with us.
FR-E740-170SC-NA
FR-E740-170SC-NA
FR-E740-170SC-NA is a Mitsubishi Electric FREQROL FR-E700 safety micro-drive combining compact construction with dependable motor control for industrial machinery.
The FR-E700 platform provides advanced magnetic-flux-vector control, easy setup from the integrated keypad, compact panel installation and safety-oriented functionality for machine applications.
Model-specific specifications
- Input power: Three-phase 380–480 V input
- Motor rating: 10 HP
- Communication: Safety-capable FR-E700 model with standard serial communication
- Construction: IP20 chassis
- Application check: Confirm the applicable duty rating for the motor and load
This model is suited to conveyors, material-handling equipment, packaging machinery and other compact automation systems requiring a 480 V drive.
This model-specific information helps confirm the motor supply, load profile, communication requirements and required power components before ordering.
- Access to the largest Mitsubishi VFD Inventory.
| Horsepower | 10 HP |
|---|---|
| Voltage | 480 V |
| Phase | 3PH |
| Brand | Mitsubishi |
Couldn't load pickup availability
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
Downloads
Bulk Order Estimate - Calculator
SAFETY MICRO-VFD, 240V 15KW 20HP
Watch the E700 Series concept video:

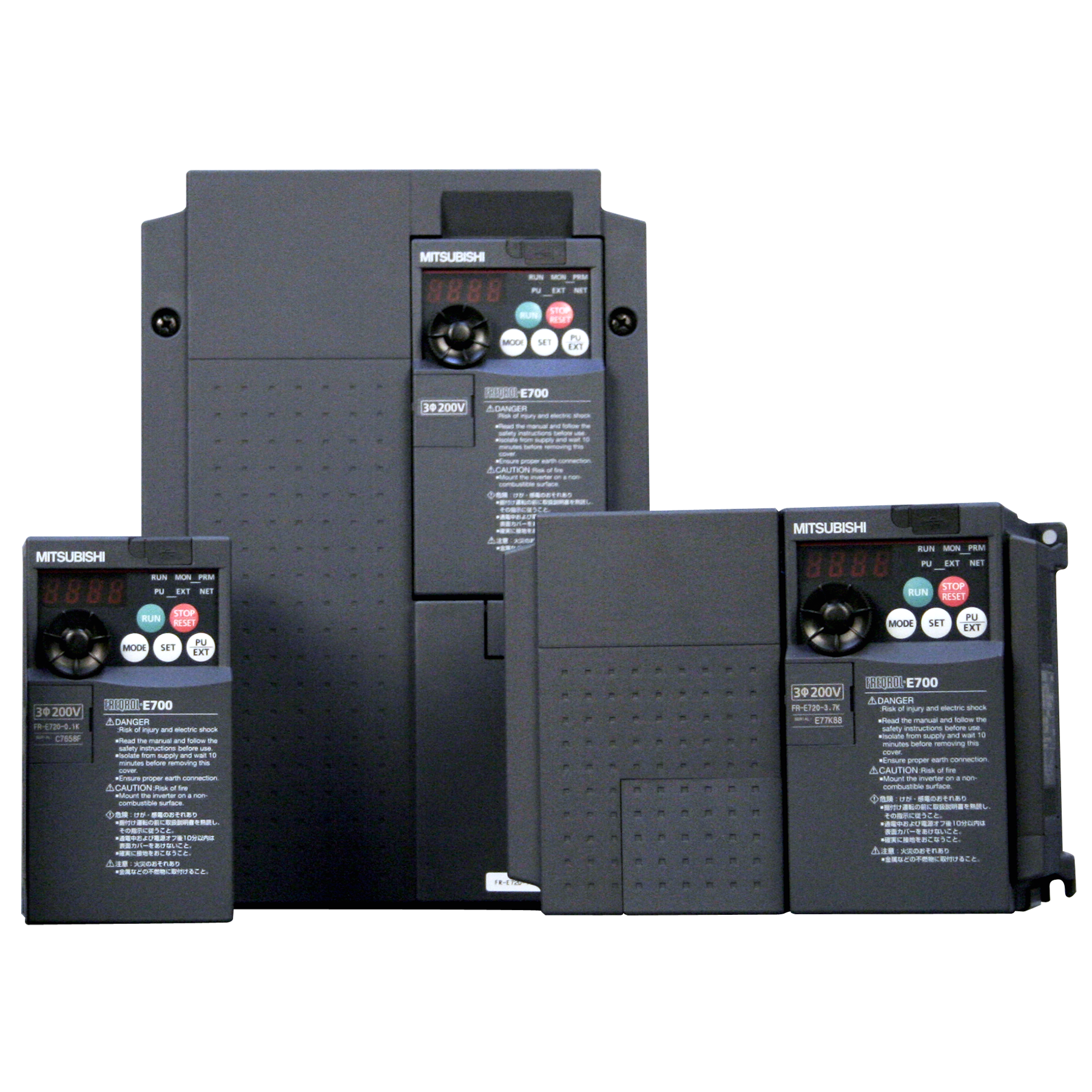

FR-E700 Series: The cost-effective variable speed control solution for general purpose applications.
- Available in 115V, 240V and 480V up to 20HP
- Advanced Magnetic Flux Vector Control: For improved starting torque and smooth low speed motor operation
- Auto-tuning: Allows improved performance using virtually any manufacturer’s motor
- All capacities include built-in brake chopper
- Safety Stop Function: Meets EN954-1 Category 3 and IEC60204-1 Stop Category 0
- USB Communications: Allows fast commissioning and troubleshooting
- Standard RS-485 Serial Communications: Supports MODBUS RTU
- Sink / Source selectable I/O
- Supports remote I/O function via network
- Built-in PID Control
- Delivers rated current at 50C and 14.5kHz carrier frequency with minimal de-rating
- 200% overload for 3 seconds
- 0 to 10V analog output
- CC-Link, DeviceNet, PROFIBUS DP, LONWORKS, EtherNet/IP
- Standard 5 year warranty
