FX3U-16MT/DSS

FX3U-16MT/DSS

Mitsubishi FX3U PLC, DC Base Unit, 8 DC In/8 Trans (Source), UL • cUL • CE (EMC)

  • Access to the largest Mitsubishi Electric PLC Inventory.
List Price: $1,000

Add to cart to view price

Number of I/O 8/8
Output Type Trans (Source)
Power Supply 24VDC
Brand Mitsubishi

Downloads

FX Family Programmable Controllers. PDF

Shop safely

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us
Model NumberStocked ItemCertificationIntegrated Inputs/OutputsPower SupplyIntegrated InputsIntegrated OutputsOutput TypePower Consumption (W)Weight (kg)Dimensions (mm)
FX3U-16MR/DSSUL • cUL • CE (EMC)1624VDC88Relay250.60130 x 90 x 86
FX3U-16MR/ESSUL • cUL • CE (EMC)16100-240VAC88Relay300.60130 x 90 x 86
FX3U-16MT/DSSSUL • cUL • CE (EMC)1624VDC88Transistor (Source)250.60130 x 90 x 86
FX3U-16MT/DSSUL • cUL • CE (EMC)1624VDC88Transistor (Sink)250.60130 x 90 x 86
FX3U-16MT/ESSSUL • cUL • CE (EMC)16100-240VAC88Transistor (Source)300.60130 x 90 x 86
FX3U-16MT/ESSUL • cUL • CE (EMC)16100-240VAC88Transistor (Sink)300.60130 x 90 x 86
Model NumberStocked ItemCertificationIntegrated Inputs/OutputsPower Supply Integrated InputsIntegrated OutputsOutput TypePower Consumption (W)Weight (kg)Dimensions (mm)
FX3U-32MR/DSSUL • cUL • CE (EMC)3224VDC1616Relay300.65150 x 90 x 86
FX3U-32MR/ESSUL • cUL • CE (EMC)32100-240VAC1616Relay350.65150 x 90 x 86
FX3U-32MT/DSSSUL • cUL • CE (EMC)3224VDC1616Transistor (Source)300.65150 x 90 x 86
FX3U-32MT/DSSUL • cUL • CE (EMC)3224VDC1616Transistor (Sink)300.65150 x 90 x 86
FX3U-32MT/ESSSUL • cUL • CE (EMC)32100-240VAC1616Transistor (Source)350.65150 x 90 x 86
FX3U-32MT/ESSUL • cUL • CE (EMC)32100-240VAC1616Transistor (Sink)350.65150 x 90 x 86
FX3U-32MR/UA1SUL • cUL • CE (EMC)32100-240VAC1616Relay350.65182 x 90 x 86
FX3U-32MS/ESSUL • cUL • CE (EMC)32100-240VAC1616Triac350.65150 x 90 x 86
Model NumberStocked ItemCertificationIntegrated Inputs/OutputsPower Supply Integrated InputsIntegrated OutputsOutput TypePower Consumption (W)Weight (kg)Dimensions (mm)
FX3U-48MR/DSSUL • cUL • CE (EMC)4824VDC2424Relay350.85182 x 90 x 86
FX3U-48MR/ESSUL • cUL • CE (EMC)48100-240VAC2424Relay400.85182 x 90 x 86
FX3U-48MT/DSSSUL • cUL • CE (EMC)4824VDC2424Transistor (Source)350.85182 x 90 x 86
FX3U-48MT/DSSUL • cUL • CE (EMC)4824VDC2424Transistor (Sink)350.85182 x 90 x 86
FX3U-48MT/ESSSUL • cUL • CE (EMC)48100-240VAC2424Transistor (Source)400.85182 x 90 x 86
FX3U-48MT/ESSUL • cUL • CE (EMC)48100-240VAC2424Transistor (Sink)400.85182 x 90 x 86
Model NumberStocked ItemCertificationIntegrated Inputs/OutputsPower Supply Integrated InputsIntegrated OutputsOutput TypePower Consumption (W)Weight (kg)Dimensions (mm)
FX3U-64MR/DSSUL • cUL • CE (EMC)6424VDC3232Relay401.0220 x 90 x 86
FX3U-64MR/ESSUL • cUL • CE (EMC)64100-240VAC3232Relay451.0220 x 90 x 86
FX3U-64MT/DSSSUL • cUL • CE (EMC)6424VDC3232Transistor (Source)401.0220 x 90 x 86
FX3U-64MT/DSSUL • cUL • CE (EMC)6424VDC3232Transistor (Sink)401.0220 x 90 x 86
FX3U-64MT/ESSSUL • cUL • CE (EMC)64100-240VAC3232Transistor (Source)451.0220 x 90 x 86
FX3U-64MT/ESSUL • cUL • CE (EMC)64100-240VAC3232Transistor (Sink)451.0220 x 90 x 86
FX3U-64MR/UA1SUL • cUL • CE (EMC)64100-240VAC3232Relay451.0285 x 90 x 86
FX3U-64MS/ESSUL • cUL • CE (EMC)64100-240VAC3232Triac451.0220 x 90 x 86
Model NumberStocked ItemCertificationIntegrated Inputs/OutputsPower Supply Integrated InputsIntegrated OutputsOutput TypePower Consumption (W)Weight (kg)Dimensions (mm)
FX3U-80MR/DS-UL • cUL • CE (EMC)8024VDC4040Relay451.2285 x 90 x 86
FX3U-80MR/ESSUL • cUL • CE (EMC)80100-240VAC4040Relay501.2285 x 90 x 86
FX3U-80MT/DSS-UL • cUL • CE (EMC)8024VDC4040Transistor (Source)451.2285 x 90 x 86
FX3U-80MT/DSSUL • cUL • CE (EMC)8024VDC4040Transistor (Sink)451.2285 x 90 x 86
FX3U-80MT/ESSSUL • cUL • CE (EMC)80100-240VAC4040Transistor (Source)501.2285 x 90 x 86
FX3U-80MT/ESSUL • cUL • CE (EMC)80100-240VAC4040Transistor (Sink)501.2285 x 90 x 86
Model NumberStocked ItemCertificationIntegrated Inputs/OutputsPower Supply Integrated InputsIntegrated OutputsOutput TypePower Consumption (W)Weight (kg)Dimensions (mm)
FX3U-128MR/ESSUL • cUL • CE (EMC)128100-240VAC6464Relay651.8350 x 90 x 86
FX3U-128MT/ESS-UL • cUL • CE (EMC)128100-240VAC6464Transistor (Source)651.8350 x 90 x 86
FX3U-128MT/ES-UL • cUL • CE (EMC)128100-240VAC6464Transistor (Sink)651.8350 x 90 x 86
Model NumberStocked ItemCertificationIntegrated Inputs/OutputsIntegrated InputsInput TypeIntegrated OutputsOutput TypePower Consumption (W)Weight (kg)Dimensions (mm)
FX3UC-16MT/D-UL • cUL • CE (EMC)168Sink8Transistor (Sink)60.234 x 90 x 74
FX3UC-16MT/DSSSUL • cUL168Sink / Source8Transistor (Source)60.234 x 90 x 74
FX3UC-16MR/DS-TSUL • cUL • CE (EMC)168Sink / Source8Relay60.234 x 90 x 74
FX3UC-32MT/D-UL • cUL • CE (EMC)3216Sink16Transistor (Sink)80.234 x 90 x 74
FX3UC-32MT/DSSSUL • cUL3216Sink / Source16Transistor (Source)80.234 x 90 x 74
FX3UC-64MT/DSUL • cUL • CE (EMC)6432Sink32Transistor (Sink)110.359.7 x 90 x 74
FX3UC-64MT/DSS-UL • cUL6432Sink / Source32Transistor (Source)110.359.7 x 90 x 74
FX3UC-96MT/D-UL • cUL • CE (EMC)9648Sink48Transistor (Sink)140.3585.4 x 90 x 74
FX3UC-96MT/DSSSUL • cUL9648Sink / Source48Transistor (Source)140.3585.4 x 90 x 74

Bulk Order Estimate - Calculator

Product Subtotal Quantity Price Subtotal
FX3U-16MT/DSS
FX3U-16MT/DSS
FX3U-16MT/DSS
$1,000.00
$790.00/ea
 $0.00
$1,000.00
$790.00/ea
 $0.00

MELSEC-F Series PLC

MELSEC_FX_Family Catalog

The MELSEC-F Series PLC provides a compact control solution with flexible options for system configuration.
Power supply, CPU, and I/O are all included in a single unit, providing basic functionality that can then be supplemented with the wide variety of expansion options for I/O, analog, positioning, and communications.

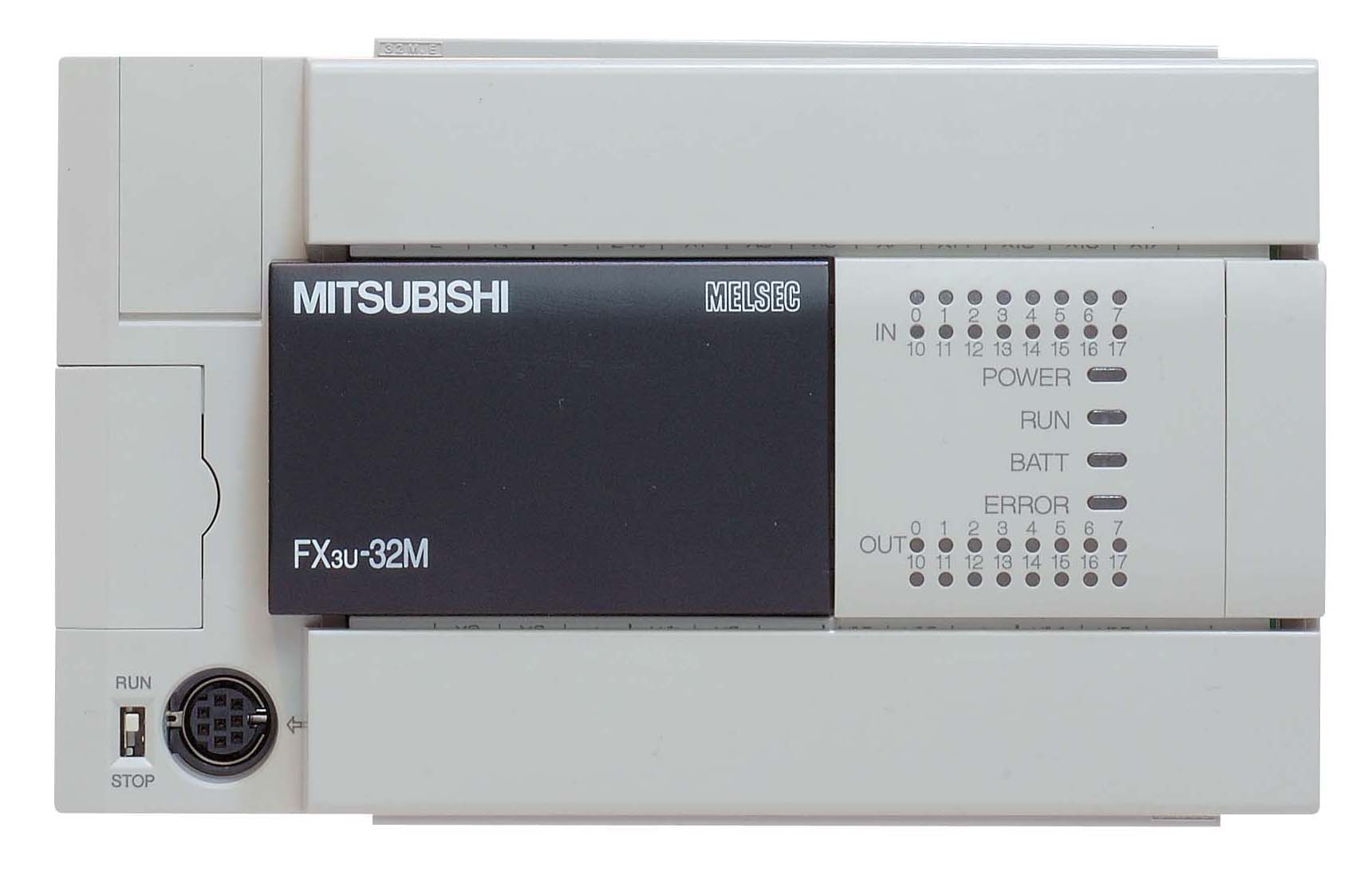

Main Unit

All-in-one power supply, CPU, and I/O main unit. Built-in features include high-speed counters, and positioning outputs, with analog, Ethernet, and USB available on some models.

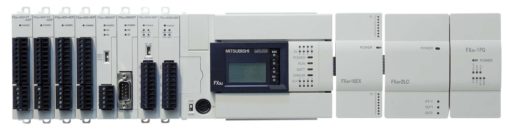

I/O Extension

I/O extension units with a built-in power supply and I/O extension blocks without a power supply are available in various I/O sizes and configurations.

Analog Control

Analog inputs and outputs, temperature sensor inputs, and temperature control with different options for sensor types and number of channels.

High-Speed Counting

Options are available to increase the performance of the built-in high-speed counters or to provide additional high-speed counting capacity.

Positioning Control

High-speed pulse train output and SSCNETIII positioning control options provide high-performance servo control on a compact platform.

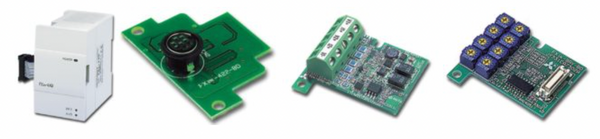

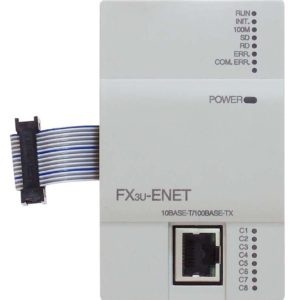

Network/Communication

Serial communication options for RS-232, RS-422, and RS-485, as well as network connectivity for MODBUS, Ethernet, CC-Link, and other networks.

Option

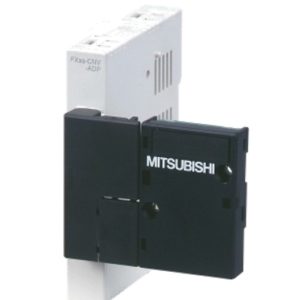

Cables, signal converters, and training software associated with the MELSEC-F Series PLC.
