FX5 Ethernet Programming Cable | Computer-to-PLC Connection
FX5 Ethernet Programming Cable | Computer-to-PLC Connection

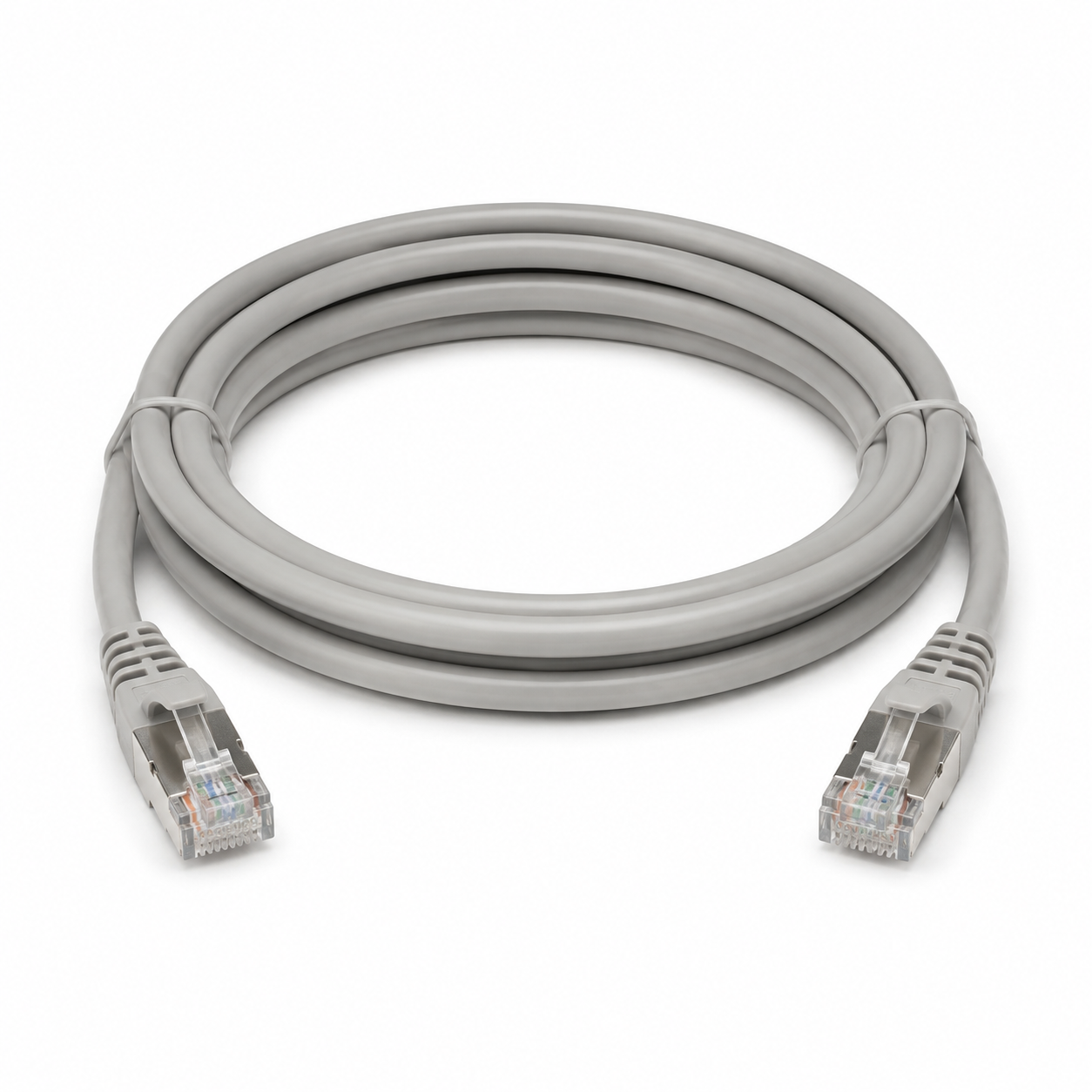

Shielded Cat6 Ethernet patch cable for connecting a computer running Mitsubishi Electric GX Works3 directly to the built-in Ethernet port of a compatible MELSEC iQ-F / FX5 CPU.
This is the correct standard Ethernet connection method for FX5 programming; no proprietary Mitsubishi programming cable is required.
Connector: RJ45 male to RJ45 male
Cable type: Shielded Cat6 Ethernet
Compatibility: FX5 CPUs equipped with an Ethernet port
| Category | PLC Power / Accessory |
|---|---|
| Function | Shielded Cat6 Ethernet patch cable for connecting a computer running Mitsubishi Electric GX Works3 directly to the built-in Ethernet port of a compatible MELSEC iQ-F / FX5 CPU.This is the correct standard Ethernet connection method for FX5 programming; no proprietary Mitsubishi programming cable is required.Connector: RJ45 male to RJ45 maleCable type: Shielded Cat6 Ethernet |
| Compatible CPUs | |
| 5 V current | See configuration check mA |
| Brand | VFD Direct |
